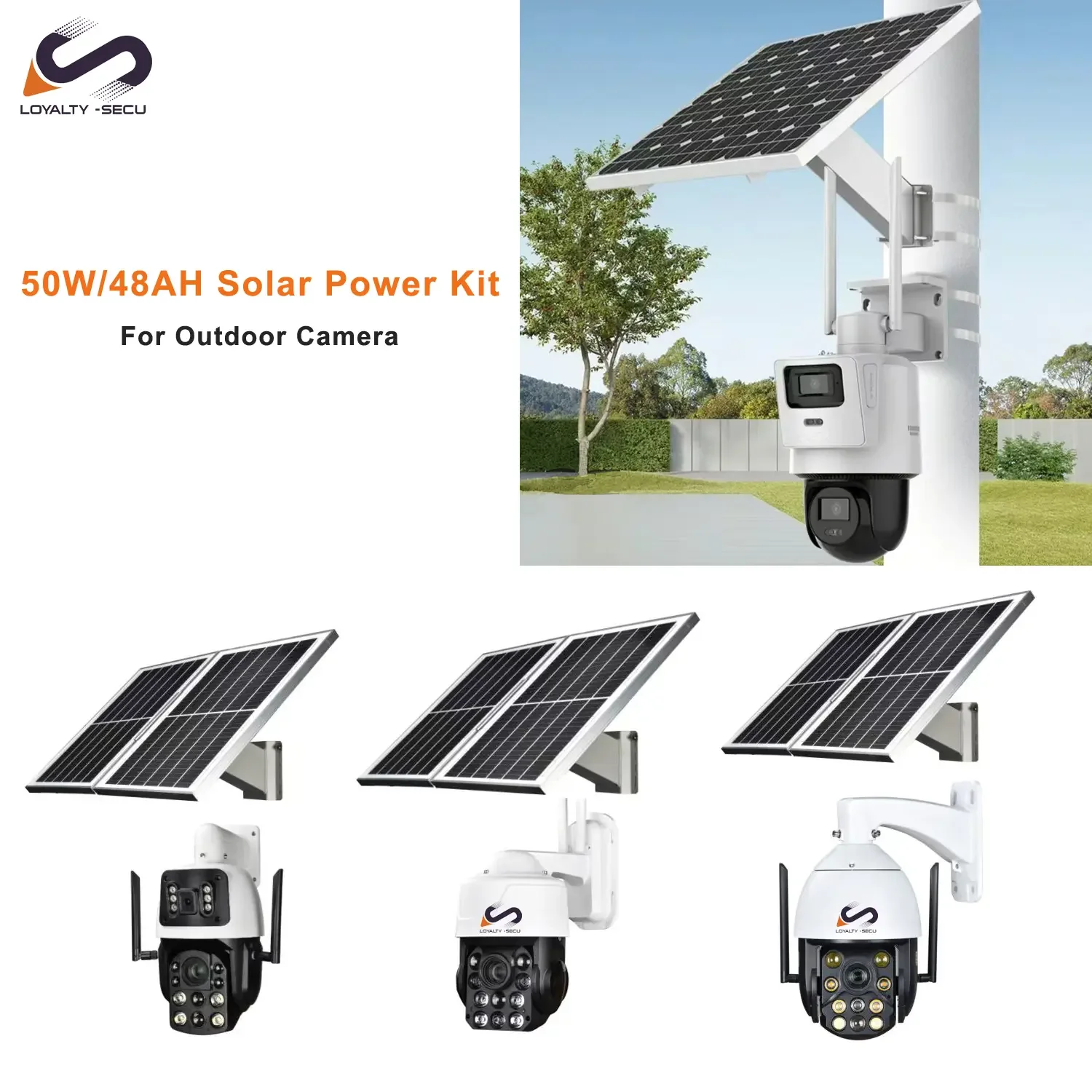

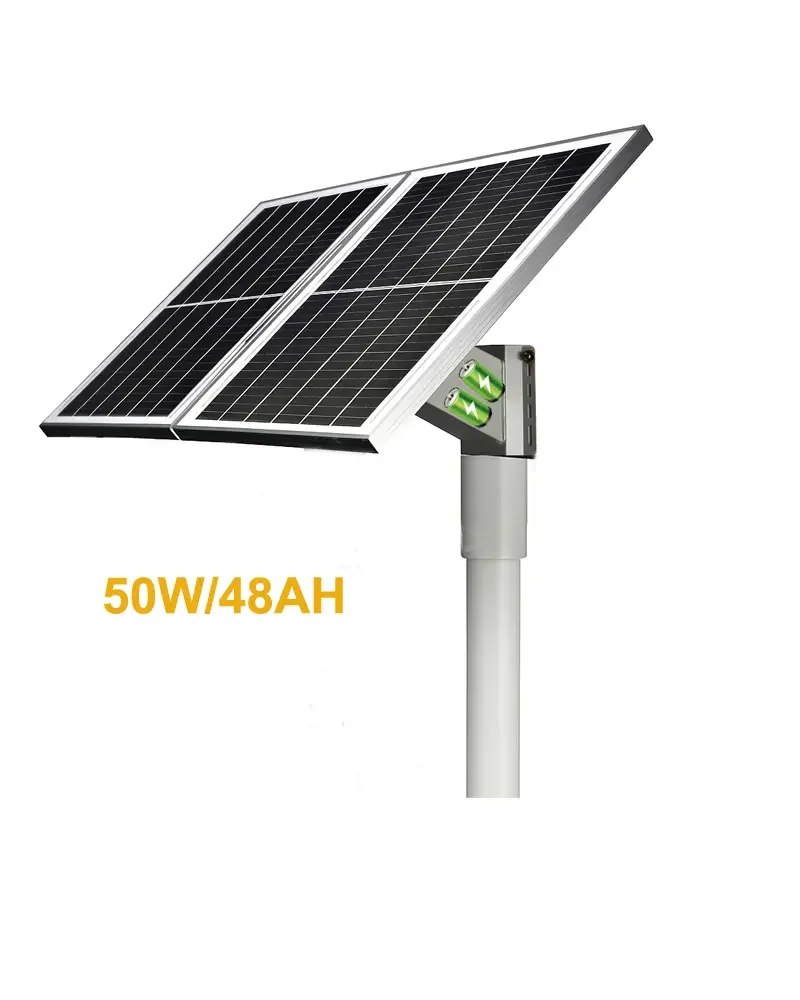

50W/48AH Solar Power Kit: MPPT Off-Grid Solution for CCTV
Model: LY-SPK-5048
- High-Efficiency Solar Power: Equipped with two 25W monocrystalline silicon solar panels with a service life of up to 25 years.
- Powerful Energy Storage: Built-in 48AH high-performance ternary lithium battery, capable of powering both standard and non-low-power cameras.
- Smart Energy Management: Integrated MPPT high-efficiency solar charge controller for optimized charging efficiency.
- Stable Power Supply: Provides 4–6 days of continuous operation even in cloudy or rainy conditions.
- Wide Compatibility: Supports most bullet and compact PTZ cameras (2–5 inch) on the market, not limited to low-power models.

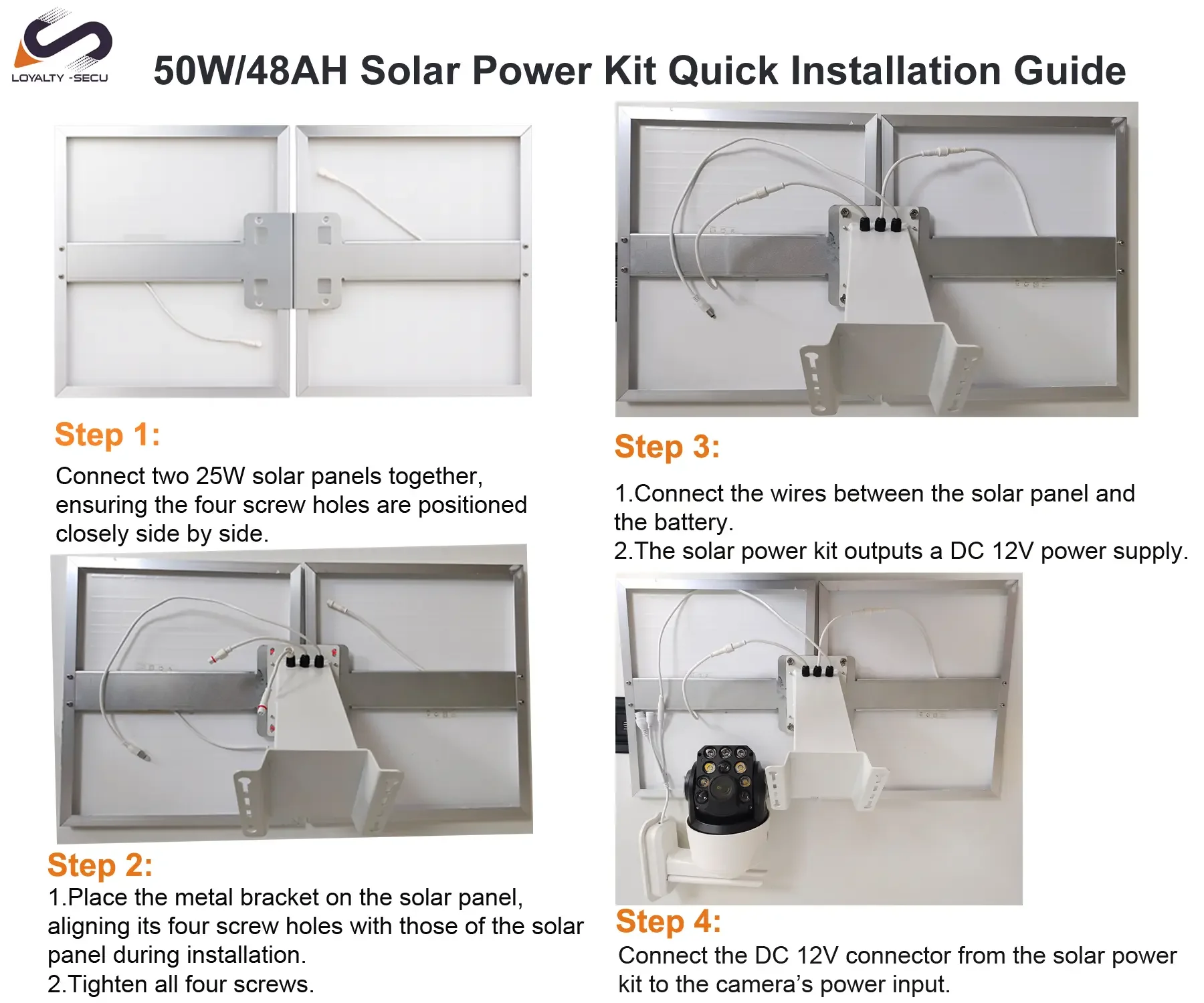

- Easy Installation: Plug & Play design, no complex wiring, quick deployment.
- Eco-Friendly & Cost-Saving: 100% solar powered, zero electricity cost for life.
- OEM/ODM Available: Customizable solutions to meet different project requirements.
| 50W/48AH Solar Power Kit Information | |
| Solar Power Kit Model | LY-SPK-5048 |

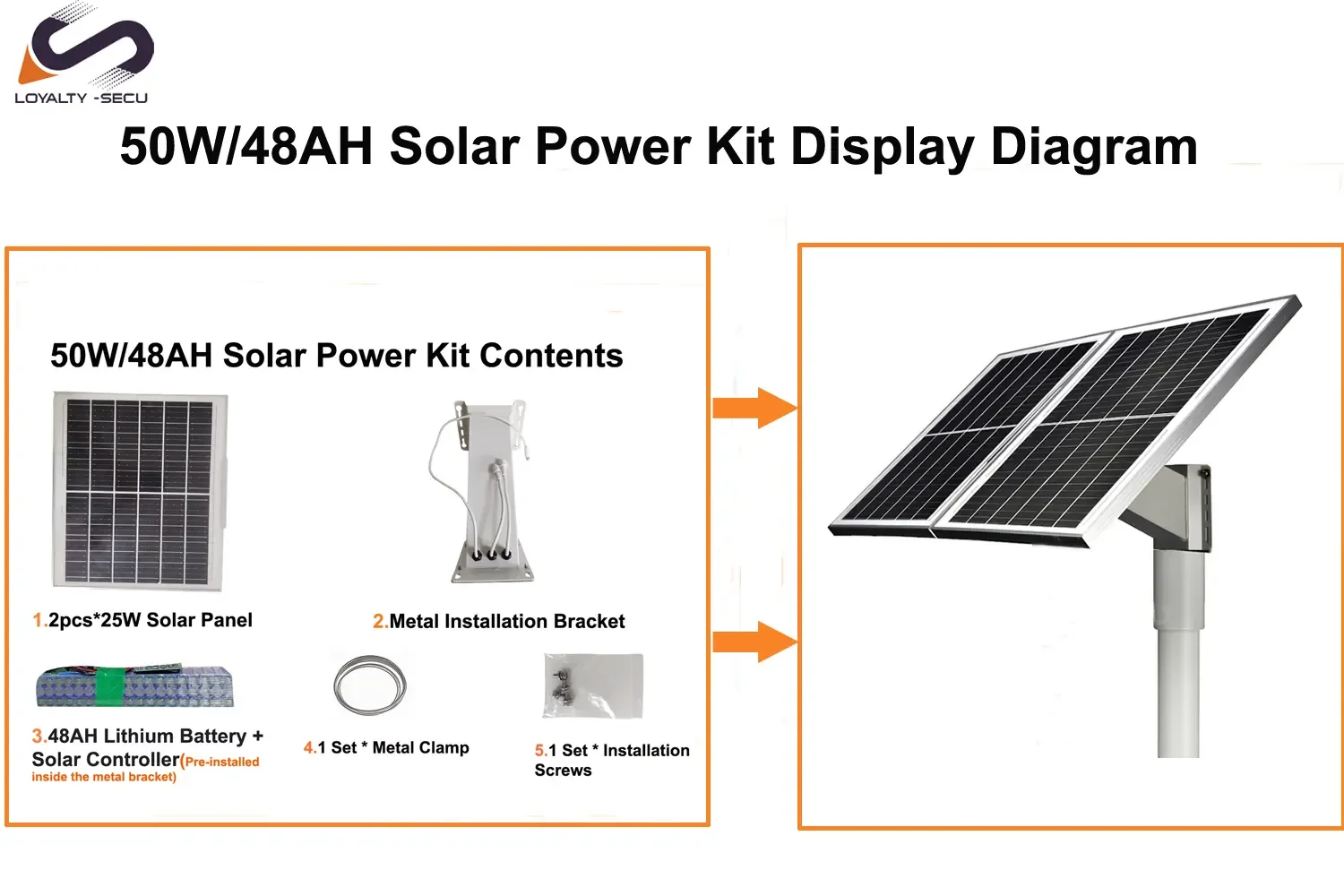

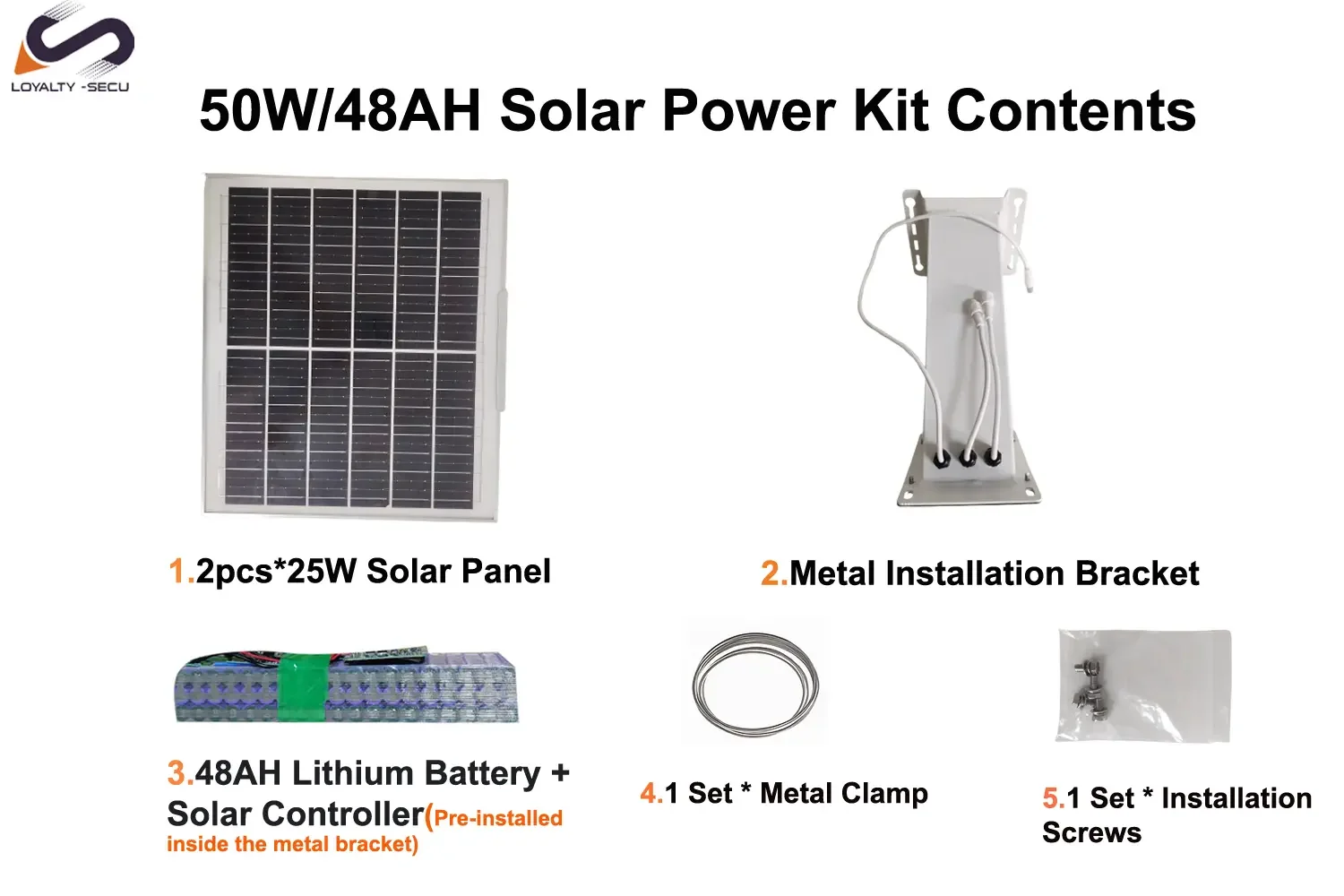

| Solar Power Kit Configuration | 2PCS * 25W Solar Panel,1PCS* 48AH Lithium Battery,1PCS * Installation Bracket,1 Set * Metal Clamp,1 Set * Installation Screws,1 Set * Quick User Guide |
| Solar Controller | Built-in MPPT High-Efficiency Solar Charge Controller |

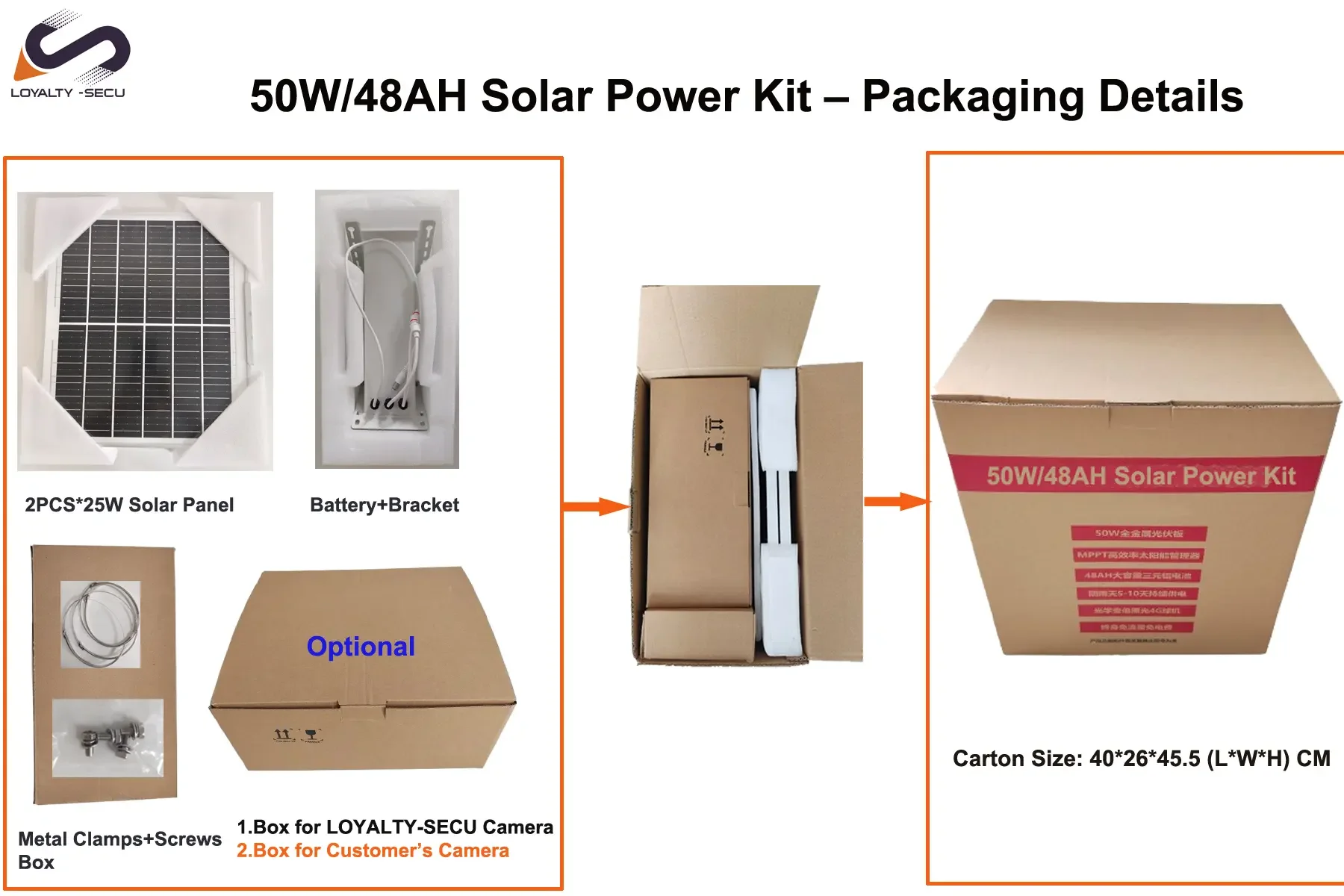

| Carton Box Size | 40*26*45.5 (L*W*H) CM |
| Gross Weight | 4.5KG |
| Power Output | DC12V (For Security Camera) |
| Solar Kit – Continuous Power Supply | 4–6 Days in Cloudy or Rainy Conditions |
| Easy Installation | True Plug & Play, No Complex Setup Required |

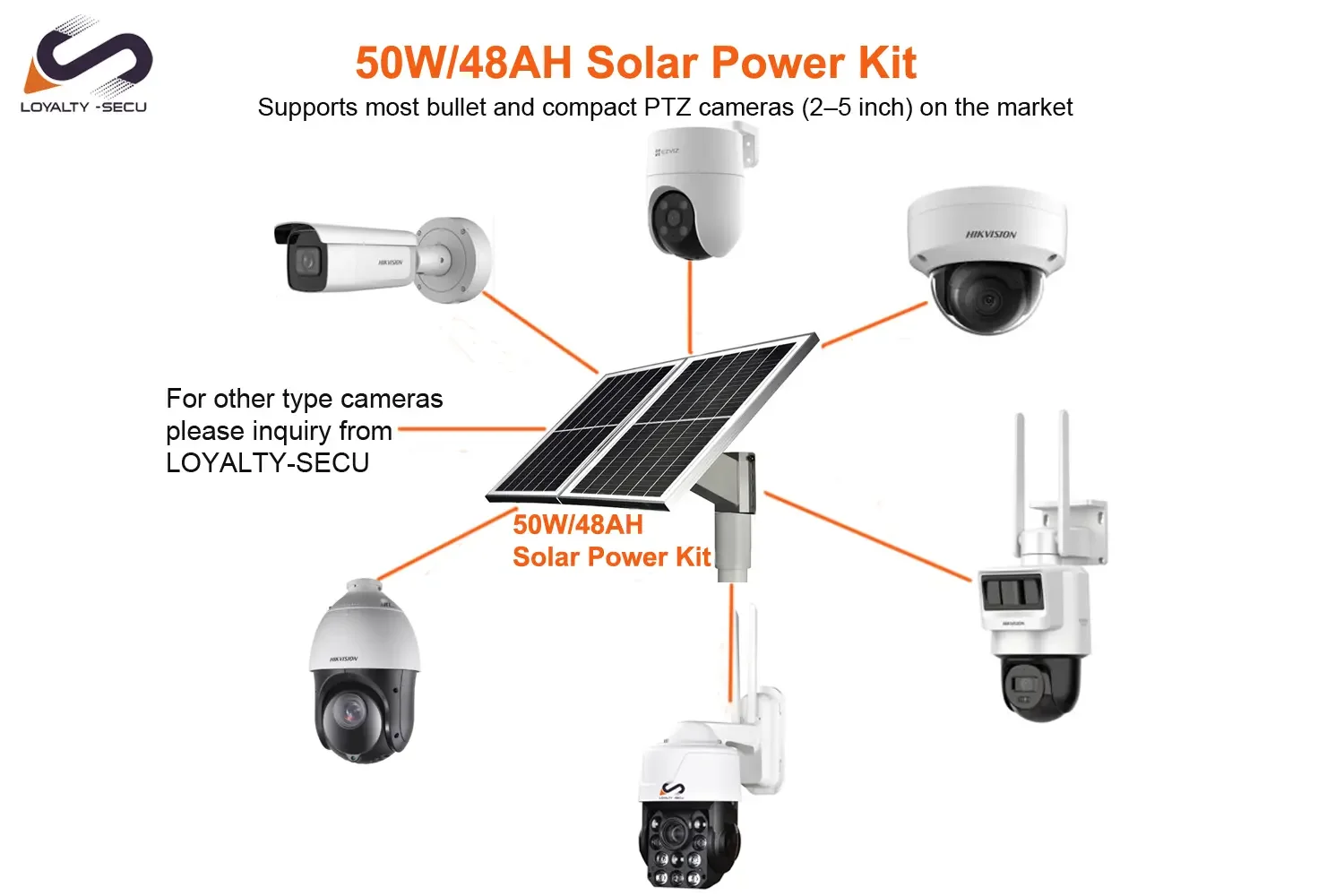

| Solar-Powered Camera Type | Compatible with most bullet cameras and compact PTZ cameras (2inch to 5inch PTZ Camera) on the market |
| Solar Power Kit Customization | Accept OEM/ODM Service |
| Solar Power Kit Warranty | 18 Months |
| Solar Panel Information | |
| Solar Panel Type | High Quality Monocrystalline Silicon Solar Panel |
| Solar Panel Voltage | 18V/25W |
| Solar Panel Quantity | 2PCS * 18V/25W Solar Panel |
| Single Solar Panel Size | 40*35*1.6 (L*W*H) CM |
| Single Solar Panel Weight | 0.7KG |
| Service Life | 25 Years |
| Maximum Power | 25W |
| Maximum Power Voltage | 17.56V |
| Temperature Range | -40° ~ +85° |
| 48AH Lithium Battery Information | |
| Lithium Battery Cell | EV MnNiCo ternary 18650 Lithium |
| Battery Capacity | 12V/48AH |
| Nominal Voltage | 12V |
| Charge/Discharge Protection Voltage | 12.6V/9V |
| Normal Charging Current | 10A |
| Discharge Temperature (Recommend) | -20°~ 60° |
| Charge Temperature (Recommend) | -5°~45° |
| Storage Time | ≥18 months (25°) |
| Battery Size | 28*10*12CM |
| Battery Weight | 1.4KG |

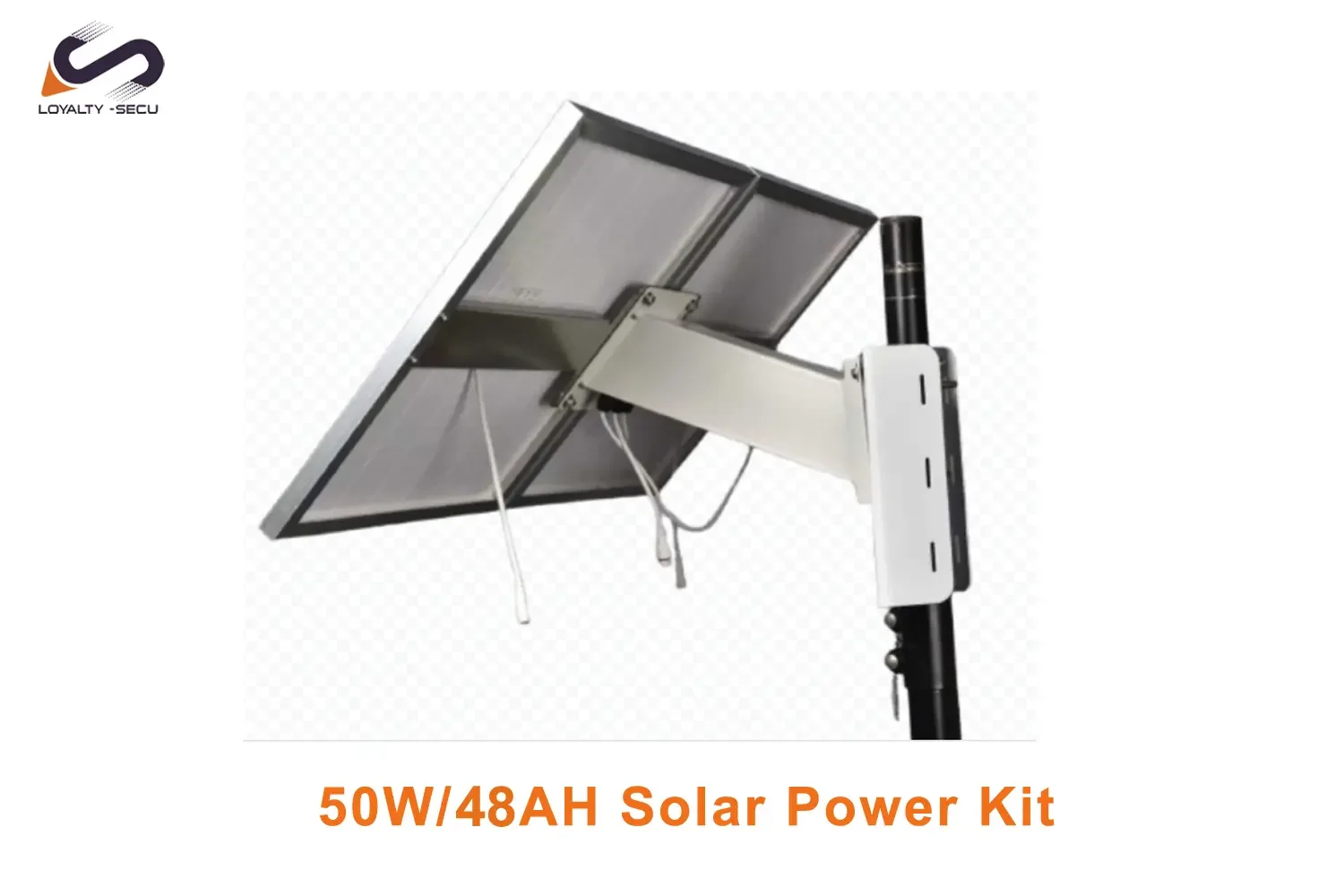

| Metal Installation Bracket Information | |
| Mounting Bracket Size at the Solar Panel End | 11*14(L*H) CM |
| Mounting Bracket Size at the Pole End | 14*12(L*H) CM |
| Bracket Size | 31*12*14CM |
| Gross Weight | 0.6KG |
