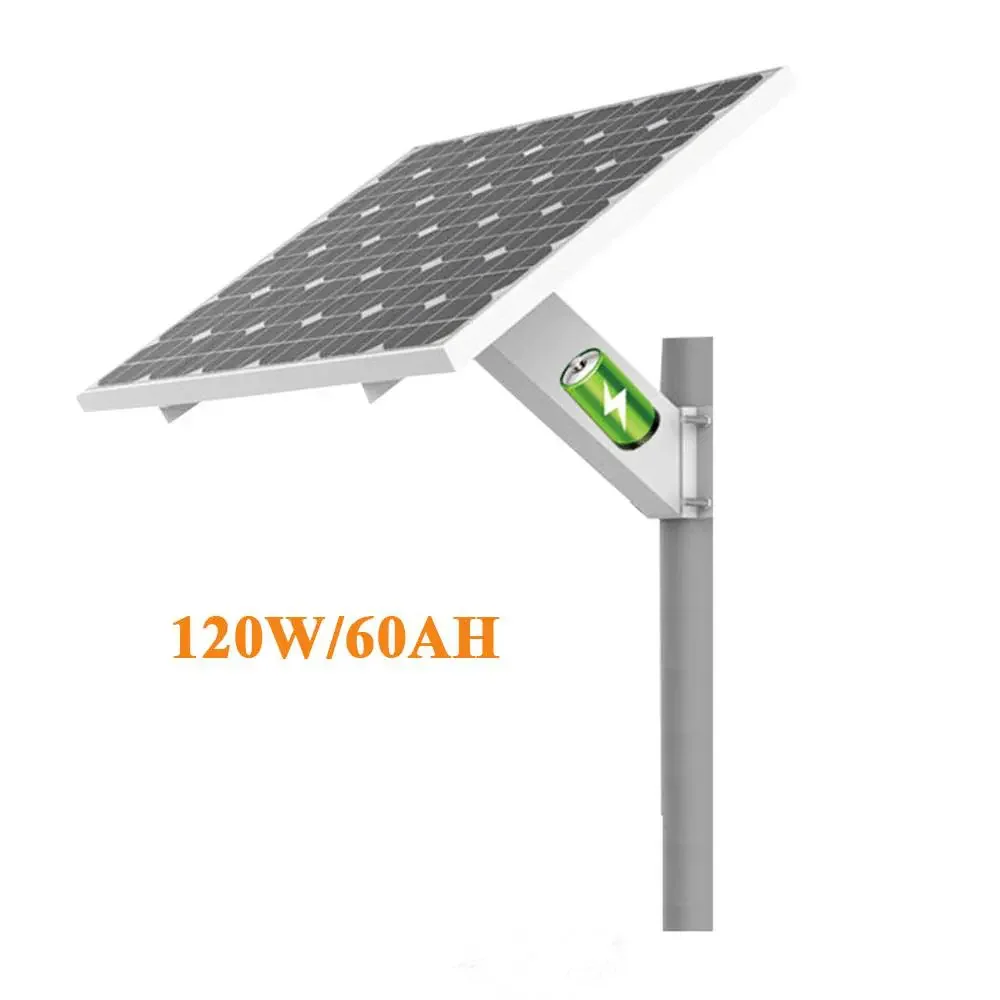

120W/60Ah Solar Power Kit: MPPT Off-Grid Solution for CCTV
Model: LY-SPS-1260AH
- 120W/60AH Standalone Solar Panel Power System for CCTV System
- 18V/120W Monocrystalline silicon Solar Panel
- 12V-60AH Automotive grade Lithium battery
- EV MnNiCo ternary 18650 Lithium Battery type
- Hikvision Similar Installation Bracket with IP67 waterproof, truly Plug and Play
- All in one installation design, the lithium battery was embedded and sealed in the metal bracket
- 2 Year warranty, free replacement within one year
- Accept the solar panel kit system customization
120W Solar Panel Specification
| Solar panel type | Monocrystalline silicon 120W |
| Solar panel Voltage/Consumption | 18V/120W |
| Power tolerance | +3% |
| Rated voltage | 17.56V |
| Service life | 25 Years |
| Maximum power | 120W |
| Maximum power voltage | 17.56V |
| Maximum current | 2.85A |
| Short-circuit current | 3.45A |
| Open-circuit Voltage | 22.32V |
| Temperature coefficient of ISC | +0.04 |
| TC of VOC | -0.38 |
| TC of Consumption | -0.47 |
| TC of IM | +0.04 |
| TC of VM | -0.38 |
| Temperature range | -40° ~ +85° |
| Rated current of bypass diode | 12A |
| Load capacity | 23m/s,7.53g |
| Max load capacity of Surface | 2400Pa |
| Solar panel size | 116*74*19CM |
| Solar panel weight | 7.25KG |
60AH Lithium Battery Specification
| Battery model | BAT01-60AH |
| Battery cell | EV MnNiCo ternary 18650 Lithium |
| Battery capacity | Min 60Ah,Max 60.9Ah |
| Nominal voltage | 12V |
| Charge/Discharge protection voltage | 12.6V/9V |
| Normal charging current | 10A |
| Max Charge/Discharge current | 20A |
| Discharge temperature (Recommend) | -20°~ 60° |
| Charge temperature (Recommend) | -5°~45° |
| Solar panel types (Recommend) | 18V Monocrystalline / Polycrystalline silicon solar panels, thin-film solar panels |
| Solar panel capacity (Recommend) | Total power load ≤100W/D,Suggest to use 50W Solar Panel Total power load >100W/D,Suggest to use 50W-100W Solar Panel |
| Intelligent Solar power system | 1.Solar panel with an-reverse protection 2.Support the tracking for the Max power generation efficiency of solar panel 3.Support the realtime detection of generation voltage and generation current, and the data upload 4.Support the detection of battery capacity, and the data upload 5.Support the detection of total load’s realtime current ,and the data upload 6. With the low voltage protection technology |
| Storage time | ≥18 months(25°) |
| Battery weight | 5.5KG |
